JAFFA Click Roofing System

The JAFFA CLICK system is an elegant roofing solution with easy installation and concealed fastening, suitable for roofs and facades.

Click to enlarge

I WANT A PRICE ESTIMATION

If you would like more information about this product or request a personalized price estimation, please contact us through this form.

Product Description

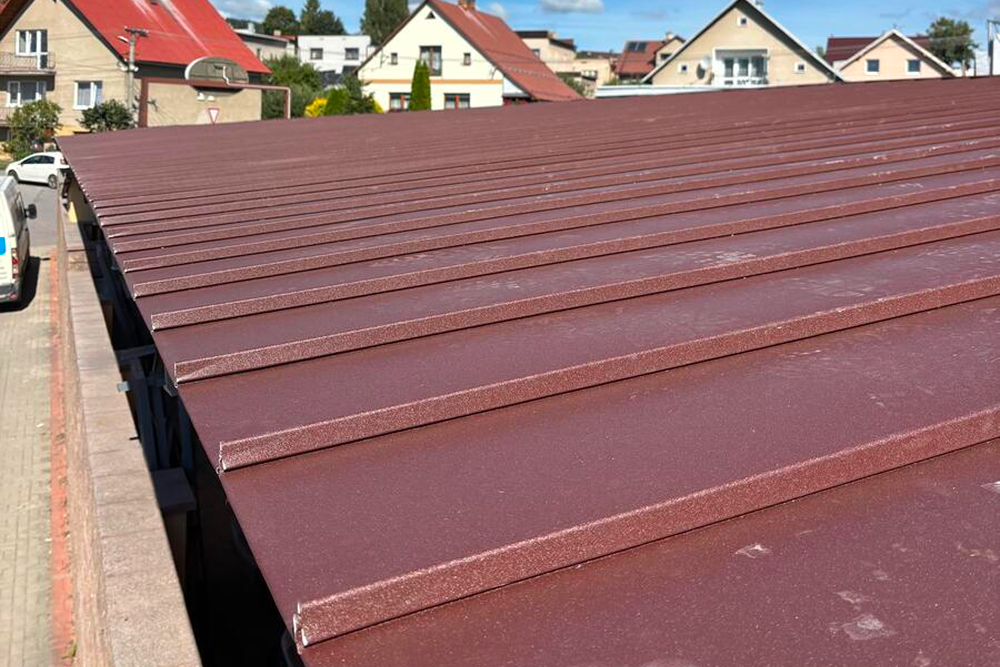

Roofing made of painted galvanized steel sheet or painted aluminum-coated steel sheet, which mimics the appearance of seamed roofing.

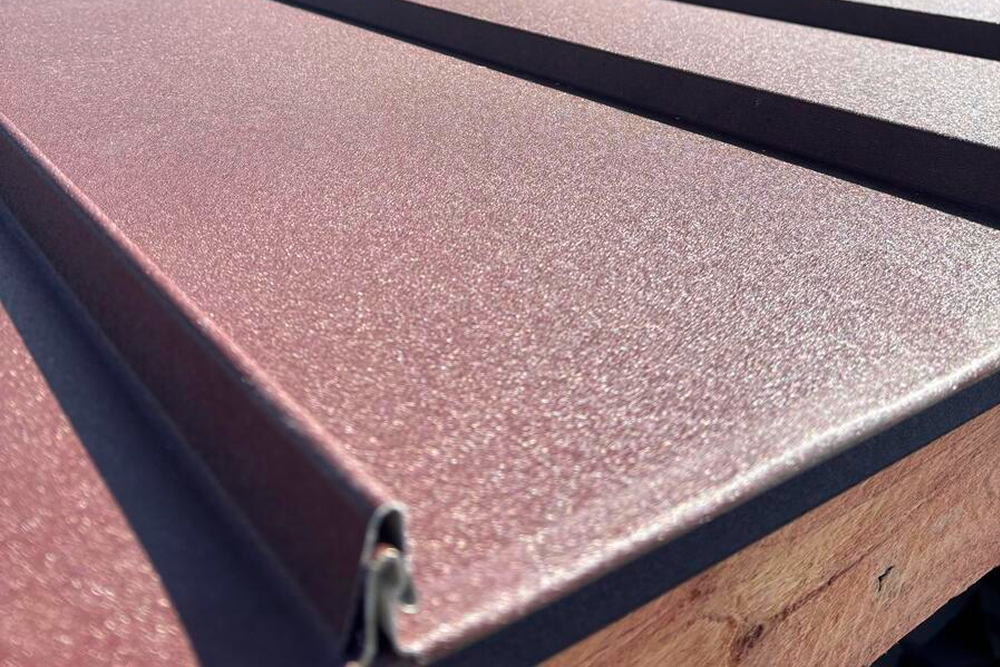

It features easy clipping of the hollow groove, known as the CLICK system.
The fastening screws are hidden.
The Click system is suitable for all types of roofs: new roofs, renovations
and facade cladding.
The minimum roof pitch is 7°, and for joining sheets, it is 14°.

TECHNICAL DRAWING

TECHNICAL DETAILS

Material	Thickness (mm)	Roofing Weight m2 (kg)	Entry Width (mm)	Overall Coverage Width (mm)	Length (mm)	Battens (mm)	Profile Height (mm)	Colors
Textured Galvanized Steel Sheet LPL	0,50	5,38	416,60	310	300 ÷ 12 000	Solid Underlayment	25	RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT
Textured Aluminum Sheet AL	0,70	2,57	416,60	310	300 ÷ 12 000	Solid Underlayment	25	RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Light Wood TXT RAL Extra Mahogany Wood TXT RAL Extra Corten TXT

Material

Installation Manual

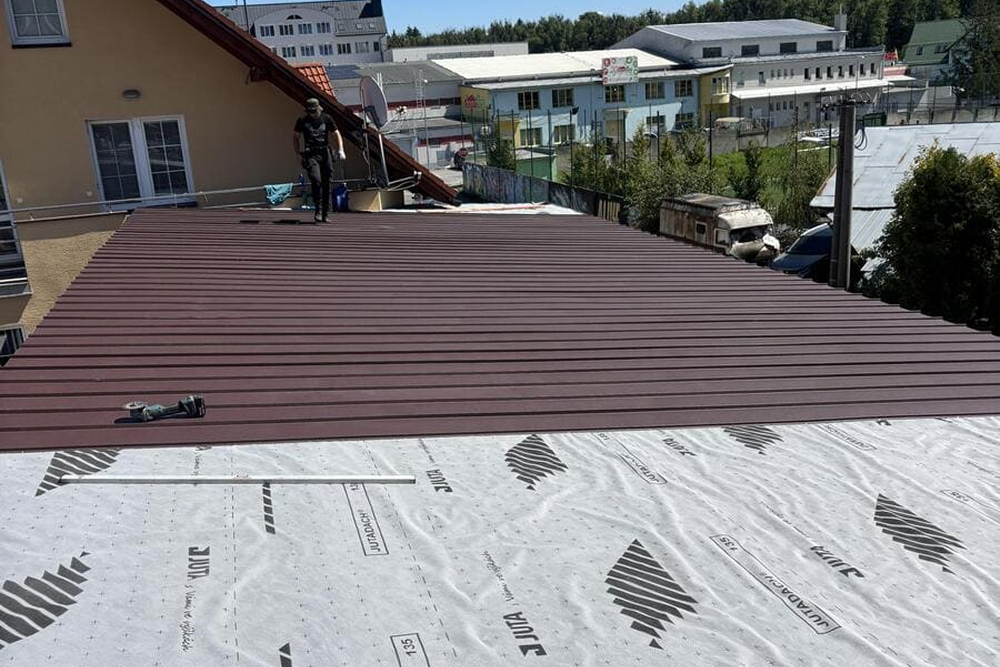

The standard method of battening is solid underlayment.
With the CLICK SYSTEM, it is important to use a starter sheet.
We use fastening material every 30 cm with coated galvanized
steel sheet LPL and aluminum sheet AL, every 40 cm.
It is also important to use vent grilles made of perforated steel sheet.
