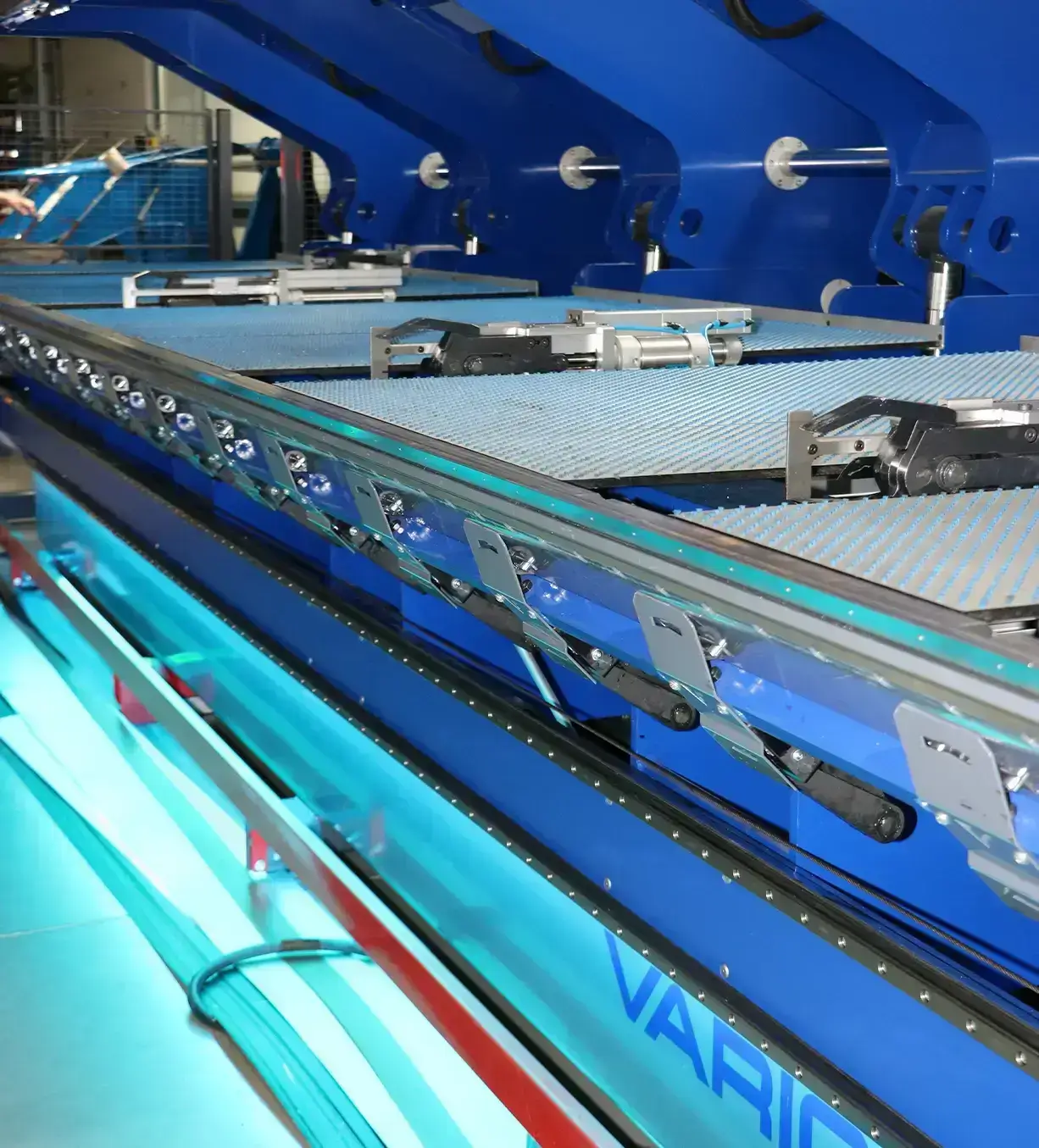

CNC Bending Machine Variobend DB 6/1.5
The double-sided sheet metal bending machine VARIOBEND is among the top in its class. Thanks to its speed, accuracy, excellent programmability, and dual-sided bending, it enables highly precise bends along the entire length of the machine.
The machine adapts individually and fully automatically to the specific material. Maximum bending flexibility allows for the automated production of profiles that cannot be processed on a manual bending machine. It is ideal for manufacturing custom trapezoidal sheets, designer façade panels, fences, and other products. One of the machine’s specialties is the ability to perform conical bending.
The maximum bending length is 6 400 mm.
TECHNICAL DETAILS
| Material type | Galvanized, LPL | Aluminum | Stainless Steel | Copper |
| Material thicknesses – bending | 1,00 mm | 2,00 mm | 1,00 mm | 0,55 mm |
| Material thicknesses – cutting | 1,00 mm | 1,50 mm | 0,80 mm | 1,00 mm |
| Max. bending angle | 135° | |||
| Working height | 1 000 mm | |||
| Max. material width | 1 250 mm | |||
| Max. material length | 6 400 mm | |||
CNC Bending Machine Variobend DB 6/1.5
The double-sided sheet metal bending machine VARIOBEND is among the top in its class. Thanks to its speed, accuracy, excellent programmability, and dual-sided bending, it enables highly precise bends along the entire length of the machine.
The machine adapts individually and fully automatically to the specific material. Maximum bending flexibility allows for the automated production of profiles that cannot be processed on a manual bending machine. It is ideal for manufacturing custom trapezoidal sheets, designer façade panels, fences, and other products. One of the machine’s specialties is the ability to perform conical bending.
The maximum bending length is 6 400 mm.
TECHNICAL DETAILS
| Material type | Galvanized, LPL | Aluminum | Stainless Steel | Copper |
| Material thicknesses – bending | 1,00 mm | 2,00 mm | 1,00 mm | 0,55 mm |
| Material thicknesses – cutting | 1,00 mm | 1,50 mm | 0,80 mm | 1,00 mm |
| Max. bending angle | 135° | |||
| Working height | 1 000 mm | |||
| Max. material width | 1 250 mm | |||
| Max. material length | 6 400 mm | |||

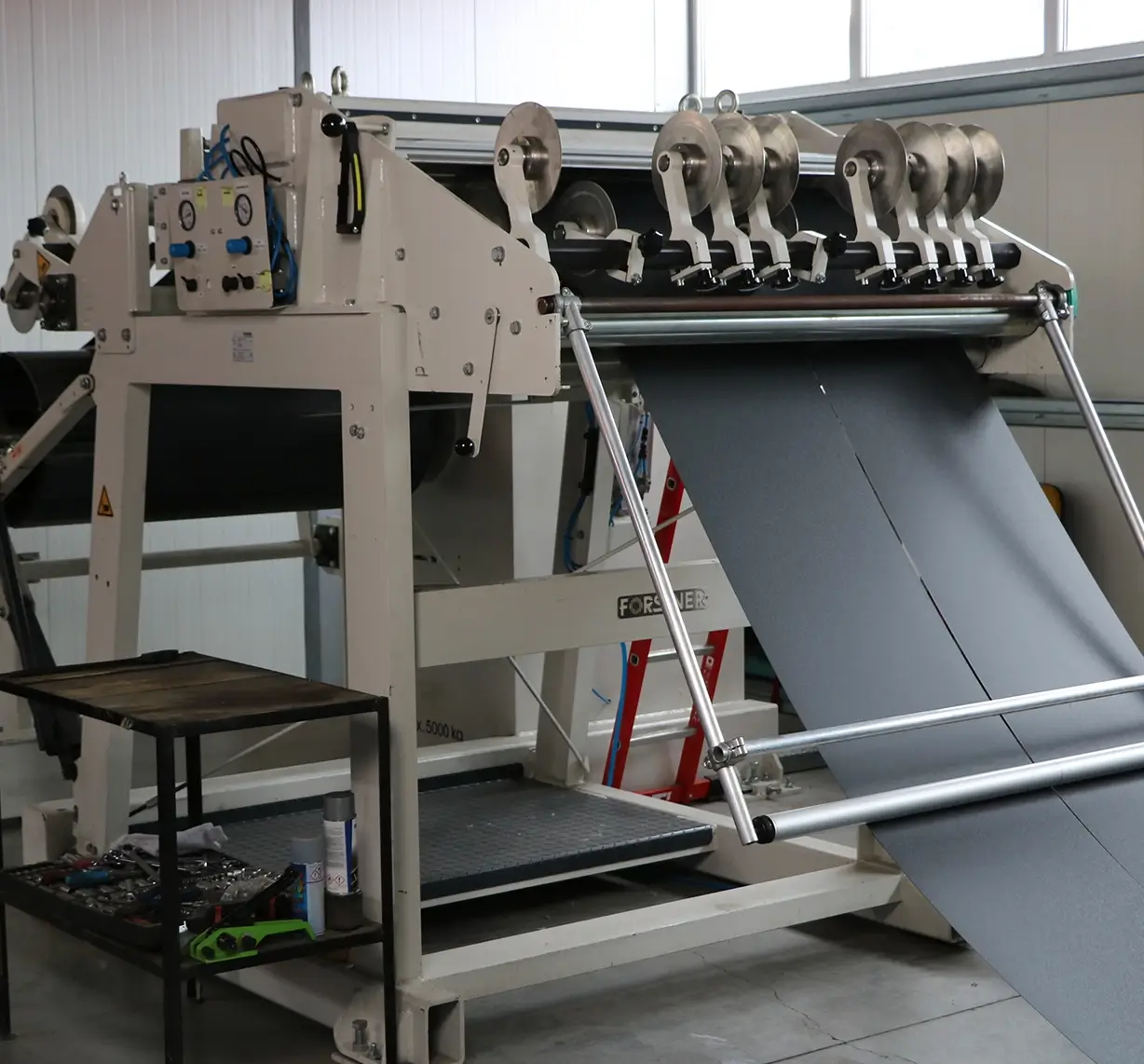

FORSTNER SHEET METAL SLITTING LINE
The sheet metal slitting line is designed for longitudinal and cross cutting of sheet metal, strip cutting, foil application, and rewinding into smaller coils according to customer requirements.
It is primarily intended for sheet metal workers and resellers.
TECHNICAL DETAILS
| Material type | Galvanized, LPL | Aluminum | Stainless Steel | Copper |
| Sheet thickness | 0,5 – 0,8 mm | |||
| Coil width | 250 – 1250 mm | |||
| Maximum input coil weight | STEEL 4000 kg | |||
| Maximum input coil weight | ALUMINUM 1300 kg | |||
| Maximum outer coil diameter | 1250 mm | |||
| Sheet cutting accuracy | +/- 0,01 mm | |||
| Side trimming | not available | |||
FORSTNER SHEET METAL SLITTING LINE
The sheet metal slitting line is designed for longitudinal and cross cutting of sheet metal, strip cutting, foil application, and rewinding into smaller coils according to customer requirements.
It is primarily intended for sheet metal workers and resellers.
TECHNICAL DETAILS
| Material type | Galvanized, LPL | Aluminum | Stainless Steel | Copper |
| Sheet thickness | 0,5 – 0,8 mm | |||
| Coil width | 250 – 1250 mm | |||
| Maximum input coil weight | STEEL 4000 kg | |||
| Maximum input coil weight | ALUMINUM 1300 kg | |||
| Maximum outer coil diameter | 1250 mm | |||
| Sheet cutting accuracy | +/- 0,01 mm | |||
| Side trimming | not available | |||

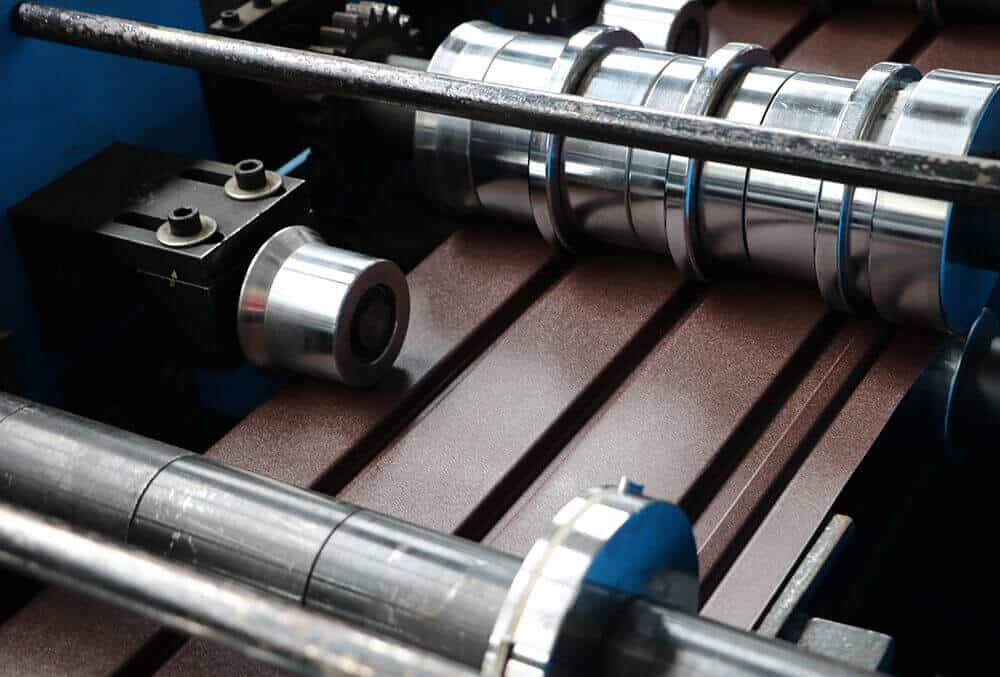

LINE FOR JAFFA ROOFING SHEETS
The JAFFA sheet profile is a shaped metal sheet produced by rolling on a forming line. The total effective coverage width of the JF profile is 880 mm, the production width is 920 mm, and the profile height is 20 mm. The design can include an embossing or be flat. Sheet lengths range from 500 mm to 12,000 mm, with the optimal handling length being up to 6500 mm.
TECHNICAL DETAILS
| Material |
Thickness (mm) |
Roofing Weight m2 (kg) |
Entry Width (mm) |
Overall Coverage Width (mm) |
Length (mm) |
Battens (mm) |
Profile Height (mm) |
Colors |
| Glossy Galvanized Steel Sheet Profile JF LPL | 0,50 | 4,56 | 1000 | 880 | 500 ÷ 12 000 | 300 | 20 | RAL 8017 |
| Matte (Textured) Galvanized Steel Sheet Profile JF LPL | 0,50 | 4,56 | 1000 | 880 | 500 ÷ 12 000 | 300 | 20 | RAL 7016 TXT |
| Galvanized Steel Sheet Profile JF ZN | 0,55 | 5,02 | 1000 | 880 | 500 ÷ 12 000 | 300 | 20 | Natural |
| Glossy Aluminum Sheet Profile JF AL | 0,70 | 2,16 | 1000 | 880 | 500 ÷ 12 000 | 400 | 20 | RAL 7016, RAL 8017 |
| Matte (Textured) Aluminum Sheet Profile JF AL | 0,70 | 2,16 | 1000 | 880 | 500 ÷ 12 000 | 400 | 20 | RAL 7016 TXT, RAL 8017 TXT |

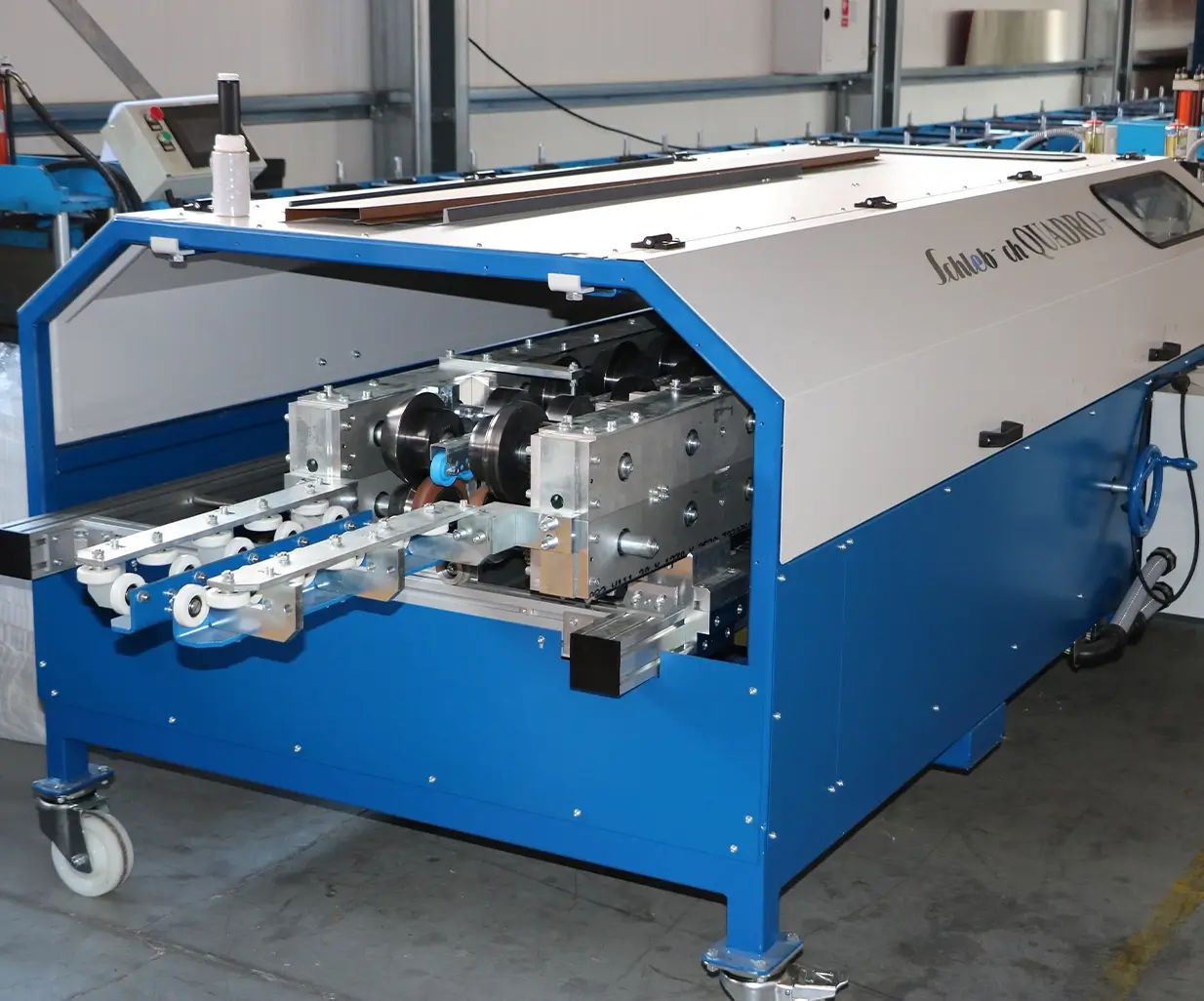

ROLL FORMING MACHINE SCHLEBACH QUADRO
The QUADRO roll forming machine is a multifunctional profiling system capable of producing three types of profiles: the CLICK system standing seam roofing JAFFA, the SOFIT JAFFA façade cladding panel, and the FALC JAFFA standing seam roofing. This versatile machine operates with sheet thicknesses from 0.5 to 0.7 mm and supports a wide range of colors.
The produced sheet lengths range from 300 mm to 12,000 mm.
ROLL FORMING MACHINE SCHLEBACH QUADRO
The QUADRO roll forming machine is a multifunctional profiling system capable of producing three types of profiles: the CLICK system standing seam roofing JAFFA, the SOFIT JAFFA façade cladding panel, and the FALC JAFFA standing seam roofing. This versatile machine operates with sheet thicknesses from 0.5 to 0.7 mm and supports a wide range of colors.
The produced sheet lengths range from 300 mm to 12,000 mm.
1. Standing Seam Roofing CLICK JAFFA
It is a roofing sheet made of coated galvanized steel or coated aluminized steel that imitates the appearance of traditional standing seam roofing. It features a simple snap-lock hollow seam, known as the CLICK system.
The fastening screws are concealed. It is installed on a full decking.
TECHNICAL DETAILS
| Material |
Thickness (mm) |
Roofing Weight m2 (kg) |
Entry Width (mm) |
Overall Coverage Width (mm) |
Length (mm) |
Battens (mm) |
Profile Height (mm) |
Colors |
| Textured Galvanized Steel Sheet LPL | 0,50 | 5,38 | 416,60 | 310 | 300 ÷ 12 000 | Solid Underlayment | 25 |
RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT |
| Textured Aluminum Sheet AL | 0,70 | 2,57 | 416,60 | 310 | 800 ÷ 6 000 | Solid Underlayment | 25 |
RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Light Wood TXT RAL Extra Dark Wood TXT, RAL Extra Corten TXT |
2. Facade Cladding SOFIT JAFFA Panel
System designed for ventilated facades, featuring a recessed panel system.
It can be used for both walls and soffits. It has a flat surface and complements any architectural metal roofing system. The SOFIT panel allows for the creation of attractive, lightweight, and durable cladding for exterior facades.
It can also be used as an interior design element. The SOFIT panel is fastened to the frame using self-tapping screws.
TECHNICAL DETAILS
| Material |
Thickness (mm) |
Roofing Weight m2 (kg) |
Entry Width (mm) |
Overall Coverage Width (mm) |
Length (mm) |
Battens (mm) |
Profile Height (mm) | Colors |
| Textured Galvanized Steel Sheet LPL | 0,50 | 6,25 | 250 | 160 | 800 ÷ 6 000 | 400 | 20 |
RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT |
| Textured Aluminum Sheet AL | 0,70 | 2,97 | 250 | 160 | 800 ÷ 6 000 | 400 | 20 |
RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Corten TXT, RAL Extra Light Wood TXT RAL Extra Magahony Wood TXT |
3. Standing Seam Roofing FALC JAFFA
It is designed for standing seam folding. It is manufactured from coated galvanized steel or coated aluminum sheet. Installation is done on a full decking.
This roofing is suitable for all types of roofs, facade cladding, soffits, and other applications.
TECHNICAL DETAILS
| Material |
Thickness (mm) |
Roofing Weight m2 (kg) |
Entry Width (mm) |
Overall Coverage Width (mm) |
Length (mm) |
Battens (mm) |
Profile Height (mm) |
Colors |
| Textured Galvanized Steel Sheet LPL | 0,50 | 5,38 | 416,60 | 310 | 300 ÷ 12 000 | Solid Underlayment | 25 |
RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT |
| Textured Aluminum Sheet AL | 0,70 | 2,57 | 416,60 | 310 | 300 ÷ 12 000 | Solid Underlayment | 25 |
RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Light Wood TXT RAL Extra Mahogany Wood TXT RAL Extra Corten TXT |

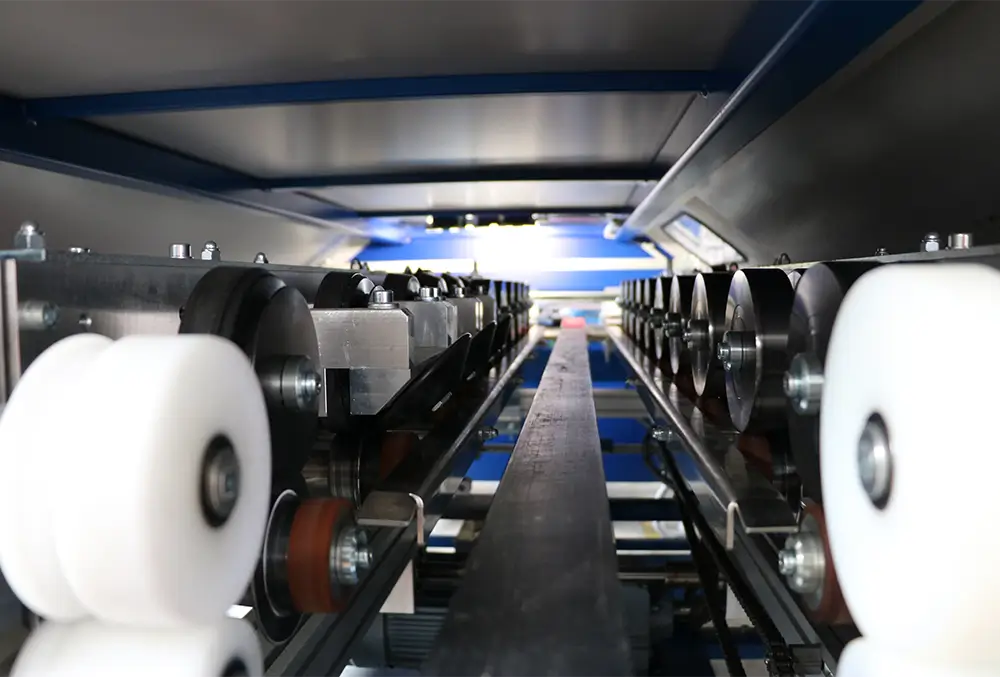

JAFFA FACADE CLADDING PRODUCTION LINE
The JAFFA facade cladding profile is a shaped metal sheet produced by rolling on a forming line. The total effective coverage width of the JF profile is 285 mm, the production width is 325 mm, and the profile height is 10 mm.
The produced sheet lengths range from 300 mm to 12,000 mm, with the optimal handling length being up to 6,500 mm.
TECHNICAL DETAILS
| Material |
Thickness (mm) |
Roofing Weight m2 (kg) |
Entry Width (mm) |
Overall Coverage Width (mm) |
Length (mm) |
Battens (mm) |
Profile Height (mm) |
Colors |
| Textured Galvanized Steel Sheet LPL | 0,50 | 5,40 | 416,60 | 290 |
300 ÷ 6 000 (longer upon agreement) |
400 | 10 |
RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT |
| Textured Aluminum Sheet AL | 0,70 | 2,57 | 416,60 | 290 |
300 ÷ 6 000 (longer upon agreement) |
400 | 10 |
RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Corten TXT, RAL Extra Light Wood TXT RAL Extra Magahony Wood TXT |

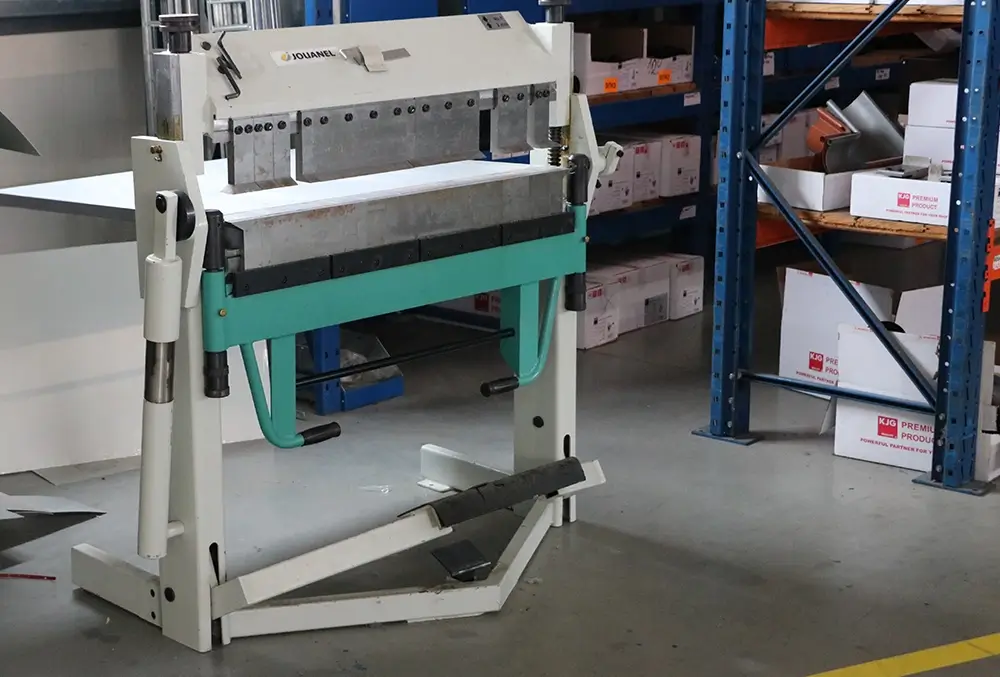

SEGMENTED BENDING MACHINE JOUANEL
It is a manual sheet metal bending machine for sheets up to 1 mm thick, with segment height of 1,000 mm.
It is mainly used for producing closed profiles, also known as boxes.
MANUAL BENDING MACHINE BŘÍ ŠVARCOVÉ 3M
The bending machine bends sheet metal up to 0.8 mm thick, with a maximum bending angle of 150°.
It is used for the production of sheet metal roofing accessories.

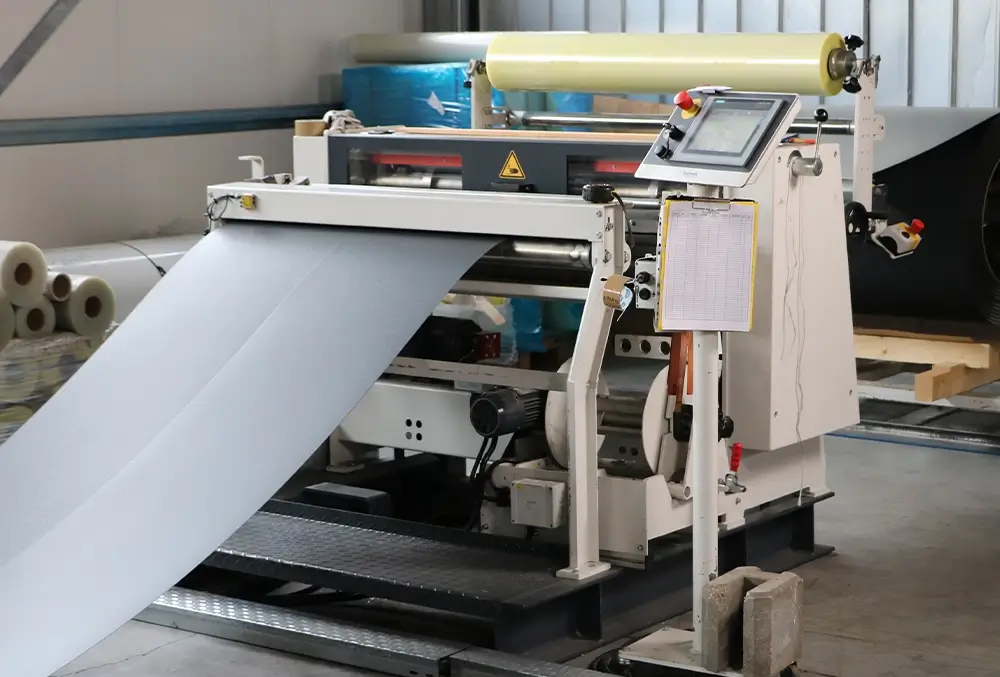

FOILING MACHINE
We apply protective foil to flat sheets with widths of 1,000 mm and 1,250 mm.
