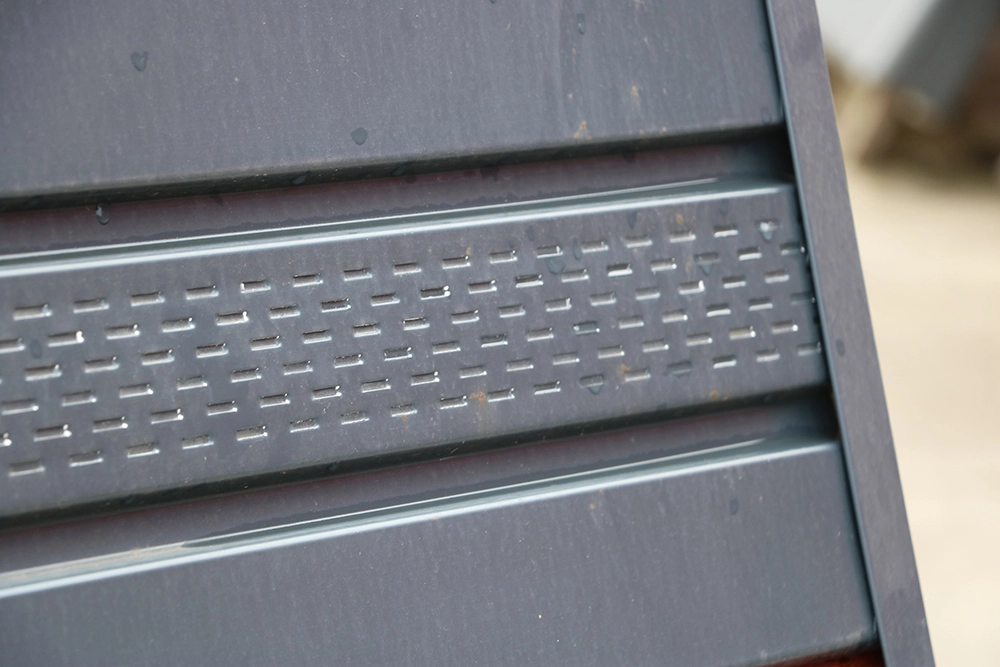

SOFIT PANEL JAFFA

SOFIT is a waterproof facade system suitable for cladding ventilated facades, walls, and soffits. It features a flat surface, easy installation with concealed self-tapping screws, and provides a durable and aesthetic solution.

Click to enlarge

I WANT A PRICE ESTIMATION

If you would like more information about this product or request a personalized price estimation, please contact us through this form.

Product Description

It is a waterproof facade system for cladding ventilated facades
The recessed panel system can be used on both walls and soffits.
It has a flat surface and complements any architectural metal roofing system.
With the SOFIT panel, we can create attractive, lightweight, and durable exterior cladding.
It can also be used as an interior design element.
The SOFIT is fastened to the frame with self-tapping screws, which are concealed.

TECHNICAL DRAWING

TECHNICAL DETAILS

Material	Thickness (mm)	Roofing Weight m2 (kg)	Entry Width (mm)	Overall Coverage Width (mm)	Length (mm)	Battens (mm)	Profile Height (mm)	Colors
Textured Galvanized Steel Sheet LPL	0,50	6,25	250	160	800 ÷ 6 000	400	20	RAL 3009 TXT, RAL 7016 TXT, RAL 8004 TXT, RAL 8017 TXT, RAL 9005 TXT, RAL Extra Golden Oak TXT RAL Extra Dark Oak TXT
Textured Aluminum Sheet AL	0,70	2,97	250	160	800 ÷ 6 000	400	20	RAL 7016 TXT, RAL 8017 TXT, RAL 9010 TXT, RAL Extra Corten TXT, RAL Extra Light Wood TXT RAL Extra Magahony Wood TXT

Material

MOUNTING METHOD

The SOFIT PANEL is fastened to 40 × 30 mm wooden battens or metal profiles (using a mounting method similar to drywall constructions) with wood screws (4.0 × 30 mm) or metal screws (4.0 × 20 mm). Batten spacing is every 40 cm (wall) and every 60 cm (ceiling). The cladding is installed using 6 screws per m². The surface weight of aluminum sheet (AL) is 3 kg/m², and the surface weight of coated steel sheet (LP) is 6.25 kg/m².

The SOFIT PANEL is fastened to 40 × 30 mm wooden battens or to metal profiles (using a mounting method similar to drywall systems) with wood screws (4.0 × 30 mm) or metal screws (4.0 × 20 mm).
Batten spacing every 40 cm (wall) and every 60 cm (ceiling).
The cladding is installed using 6 screws per m².
The surface weight of aluminum sheet (AL) is 3 kg/m².
The surface weight of coated steel sheet (LP) is 6.25 kg/m².
